Using Jupyter AI with Ollama

To use Jupyter AI on LRC Open Ondemand, follow the following steps. In the example, we will use es0 partition as an example, but you are free to use other partitions that are available to you. However, note that Large Language Models (LLMs) work faster and more efficiently on GPU nodes.

  1. Choose the Jupyter Server option from the list of apps. Select the following parameters in the form presented:

    • Choose anaconda3/2024.10-1-11.4 option for the anaconda version.
    • Type in (or copy) the following additional modules in the Extra software modules you wish to use textbox (two modules are separated by a space):
      ai/jupyter-ai/2.31.4 ai/ollama/0.6.8
    • (Optional) Type in a Name of the job.
    • Choose a SLURM Partition from the list. es0 or es1 is recommended. If you choose es1 then you will have to choose a GPU Type from a dropdown.
    • Choose SLURM Project/Account Name and QoS according to the availability on the dropdowns and your needs. For Qos, you can choose lr_normal or es_normal if you are unsure.
    • Select number of GPU cards to use. The number of GPU cards to use can range from 1 to the maximum number specified in the GPU Type dropdown box. Start with 1 to check if that is enough for your use.

    • Select the number of CPU cores per node. If you are on es0, use 2 cores per GPU. If you are on es1, use the following CPU cores / GPU to guide your choice per node.

      • V100: 2 cores per GPU
      • A40: 16 cores per GPU
      • H100: 14 cores per GPU

    • Enter the hours to run on Jupyter Server (default value is 1 hour).

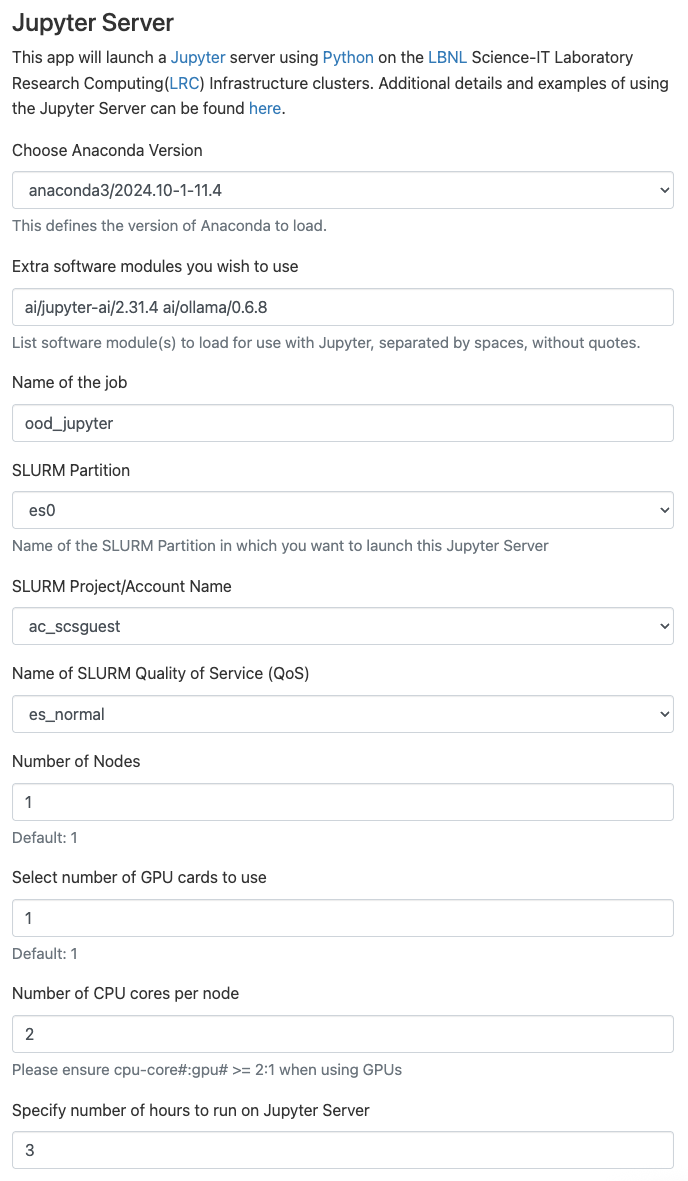

    Example form for choosing two GTX2080TI GPU cards on es0 partition

    Jupyter AI Option

  2. Click Launch. Upon clicking Launch, you may have to wait for the requested resource to be allocated.

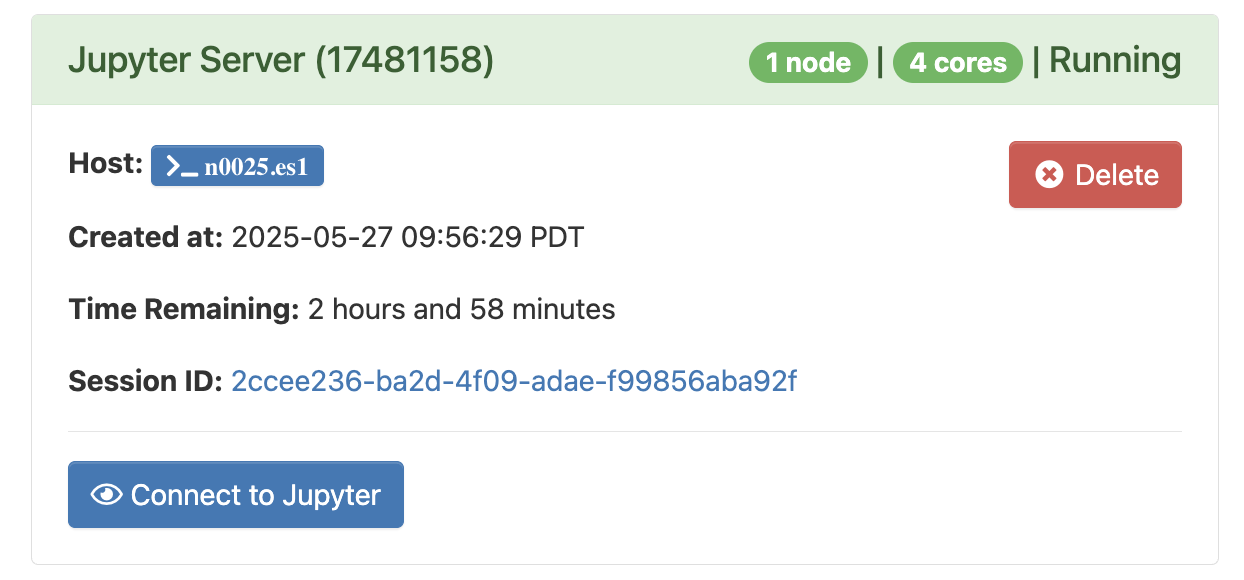

  3. When the server is ready, Click on the Connect to Jupyter button to open your jupyter server session. Jupyter Connect
  4. After clicking on Connect to Jupyter, you will enter the JupyterLab interface. To start Ollma, follow the steps:
    • Open a new Terminal: File > New > Terminal
    • On the terminal type and enter the command start-ollama.sh
    • Once the script lists Ollama models, it means that Ollama is running on the node you have requested and available to you to use through the jupyter-ai extension

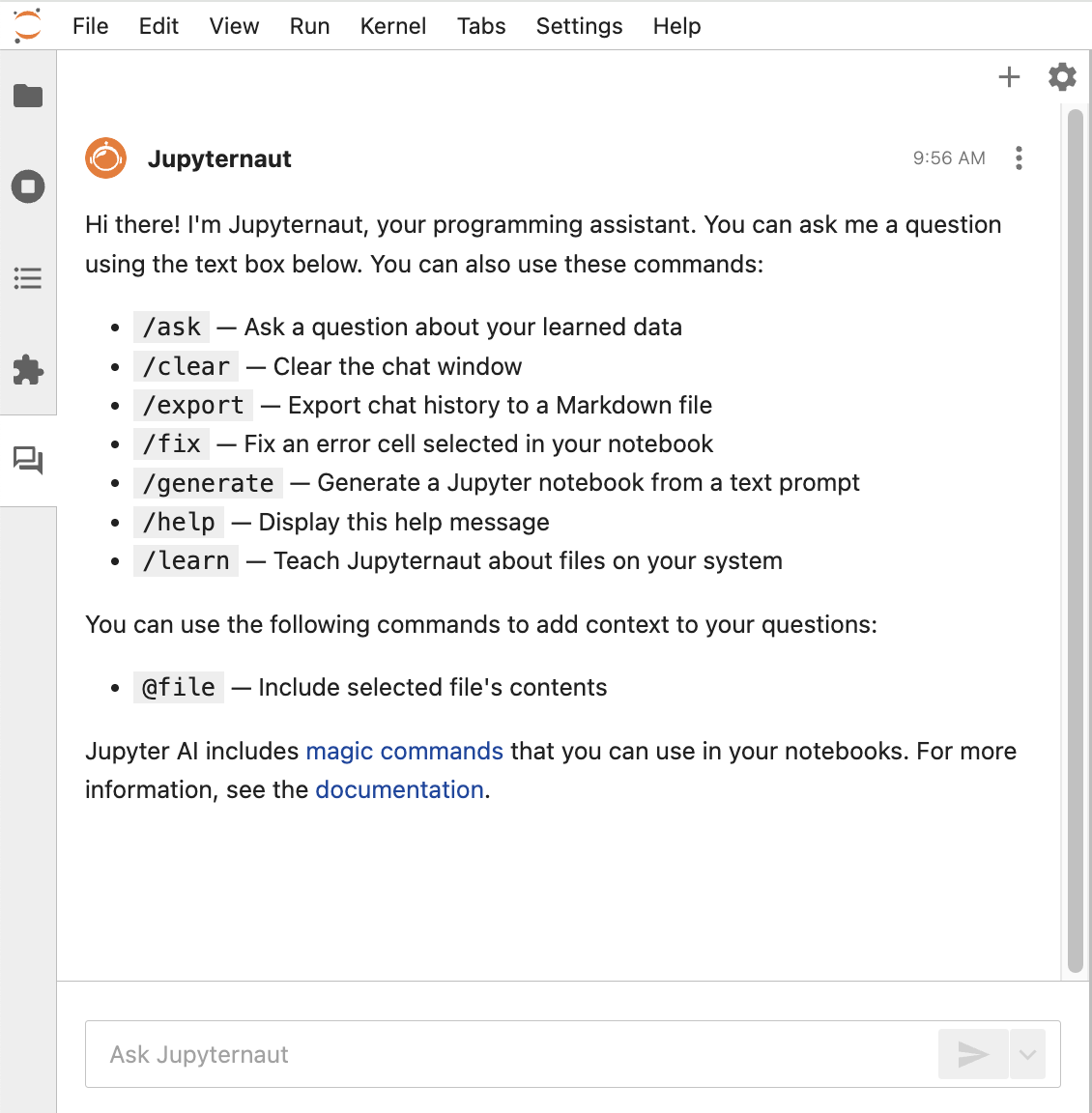

  5. Click on the Jupyter AI chat interface on the left-side of the JupyterLab workspace. To change models or settings click on the settings icon of the Jupyter AI interface on the top right corner. Jupyter AI Interface
